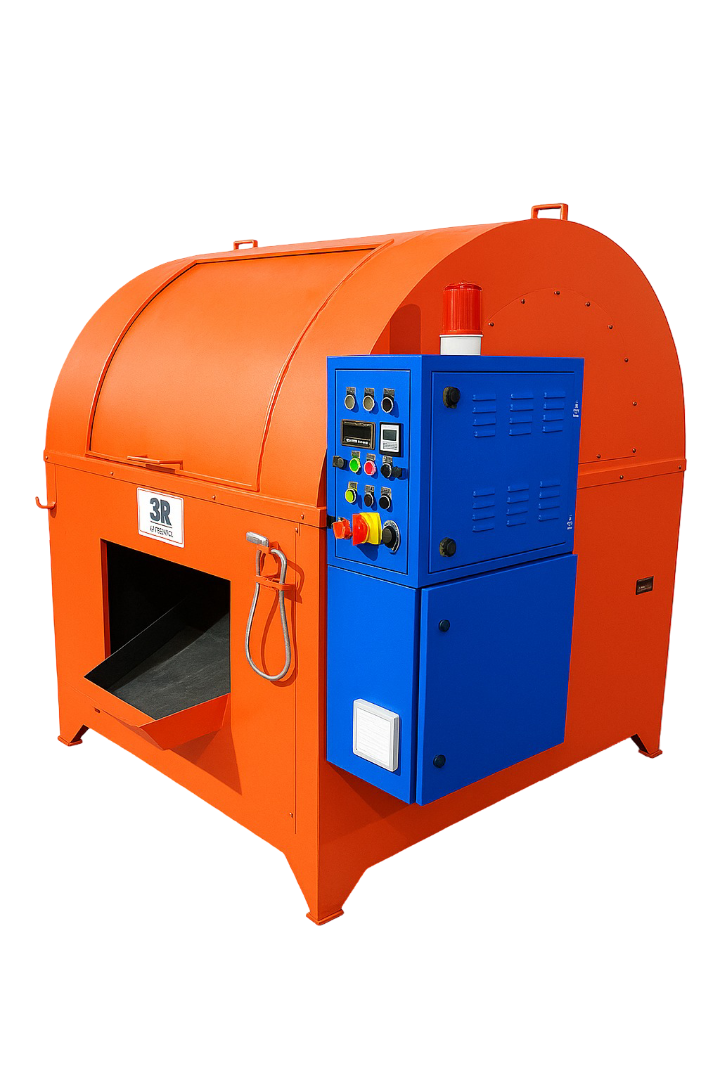

Centrifugal Barrel finishing Machines
High energy centrifugal finishing machines also known as harperizer systems are the fastest and most cost-effective method for deburring and/or polishing mass parts or individual parts. Extremely high centrifugal forces can be generated on parts with this method. Using this concept in combination with various types of ceramic and organic corn cob media, virtually any part finish is achieved from burr removal to extremely high surface finish polishing.
Centrifugal Barrel finishing Machines
| Models | No.of Barrels | Floor Spacing(mm)(LXWXH) | Motor (HP) |
|---|---|---|---|
| 3RCB30 (V) | 7.5 litres x 4 | 1150 x 1100 x 1550 | 3 |
| 3RCB50 | 12.5 litres x 4 | 2910 x 1300 x 1900 | 5 |
| 3RCB80 | 20 litres x 4 | 3270 x 1250 x 1830 | 7.5 |
| 3RCB100 | 25 litres x 4 | 3330 x 1550 x 2150 | 10 |
| 3RCB160 | 40 litres x 4 | 3950 x 2040 x 2400 | 15 |
| 3RCB240 | 60 litres x 4 | 3950 x 2200 x 2800 | 25 |
